Custom Disc Gaskets & Round Seals — Instant Quote
Custom Disc Gaskets & Round Seals — Instant Quote

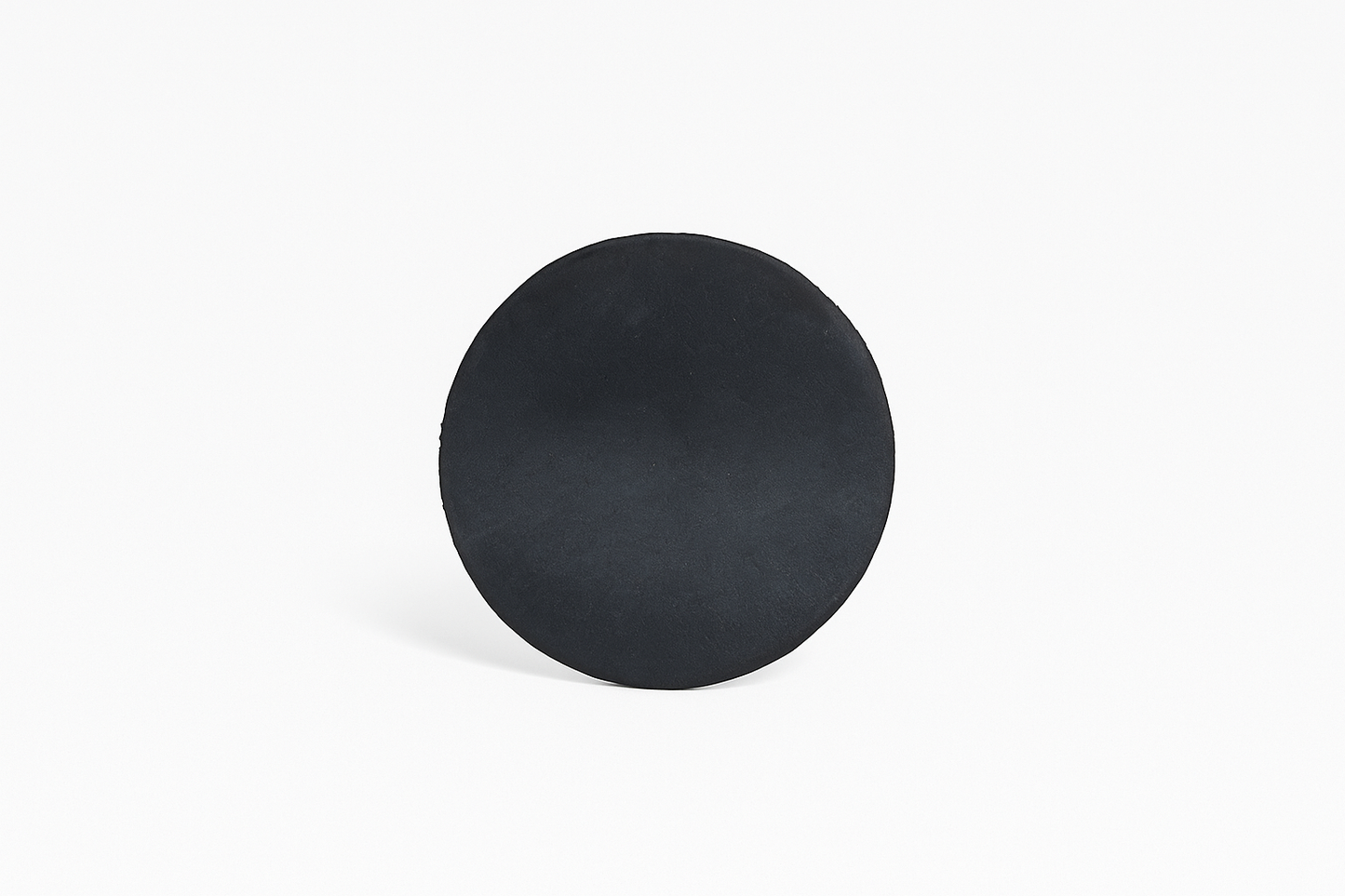

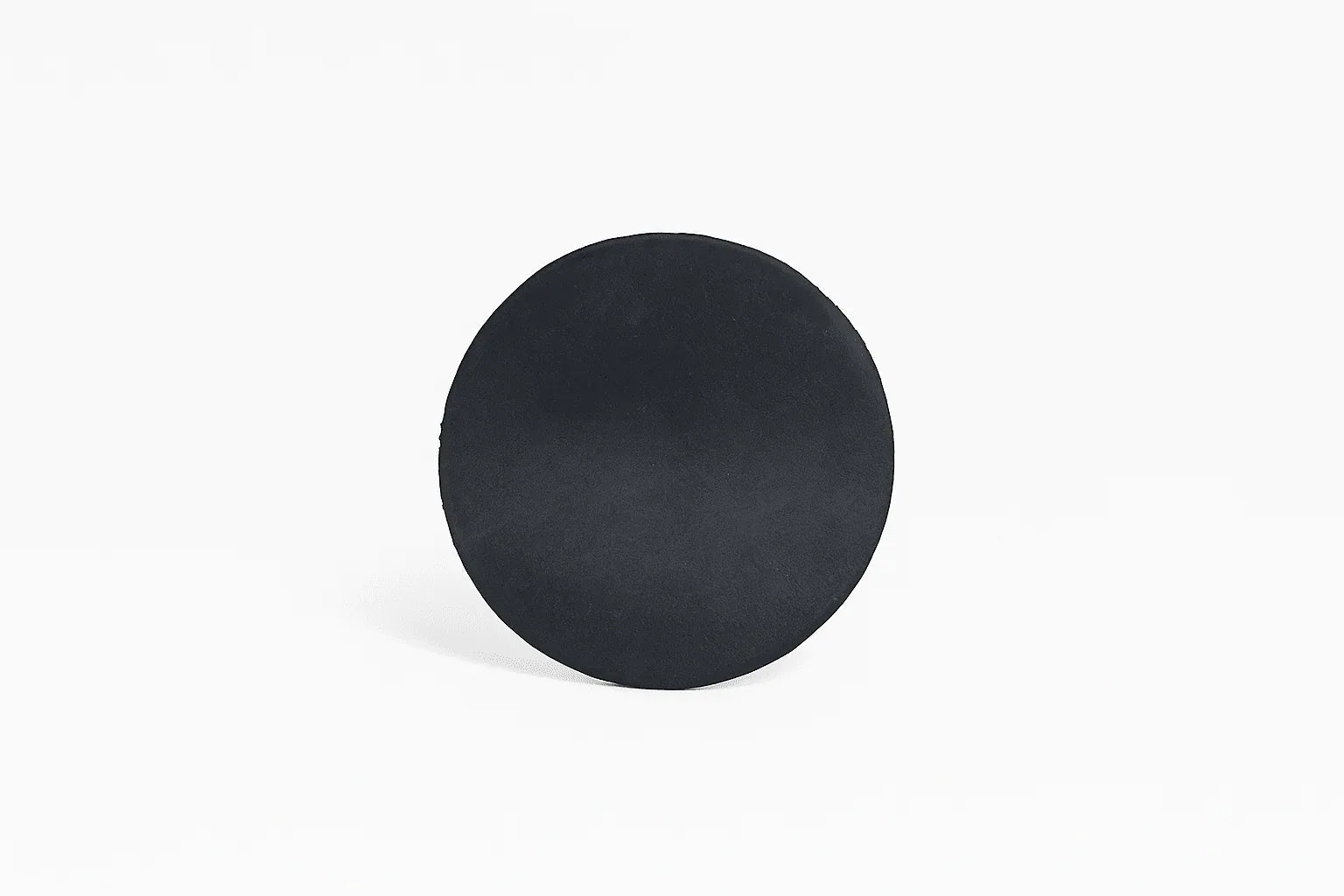

A disc gasket is a solid round seal cut to your exact diameter — the simplest and most common gasket shape. We CNC cut (laser, waterjet, and more) custom disc gaskets in any material with no minimum order, and ship within one business day. Cut to ±0.015″ tolerance.
Dimensions You Enter for a Disc Gasket

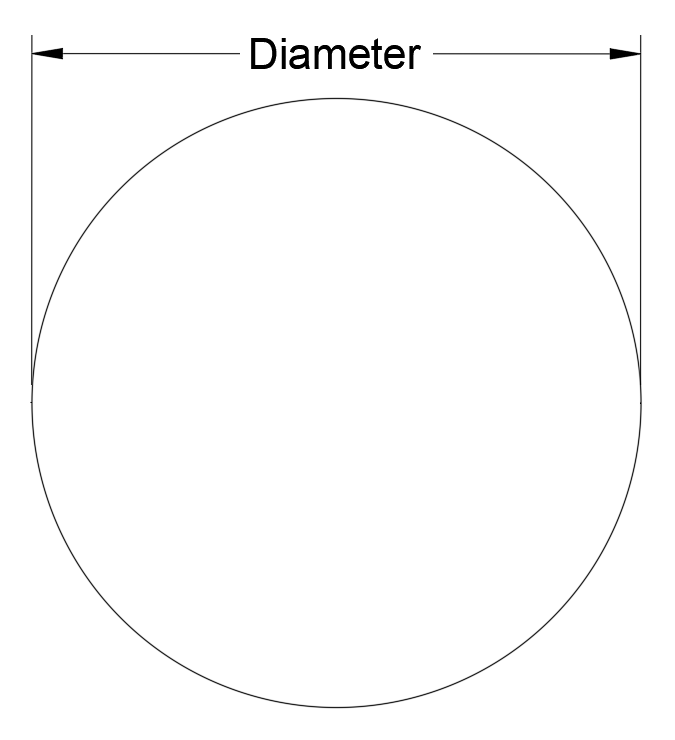

| Outer diameter | The full width of the disc |
| Thickness | 1/16", 1/8", 3/16", or 1/4" |
| Material | Any elastomer or fiber in the configurator |

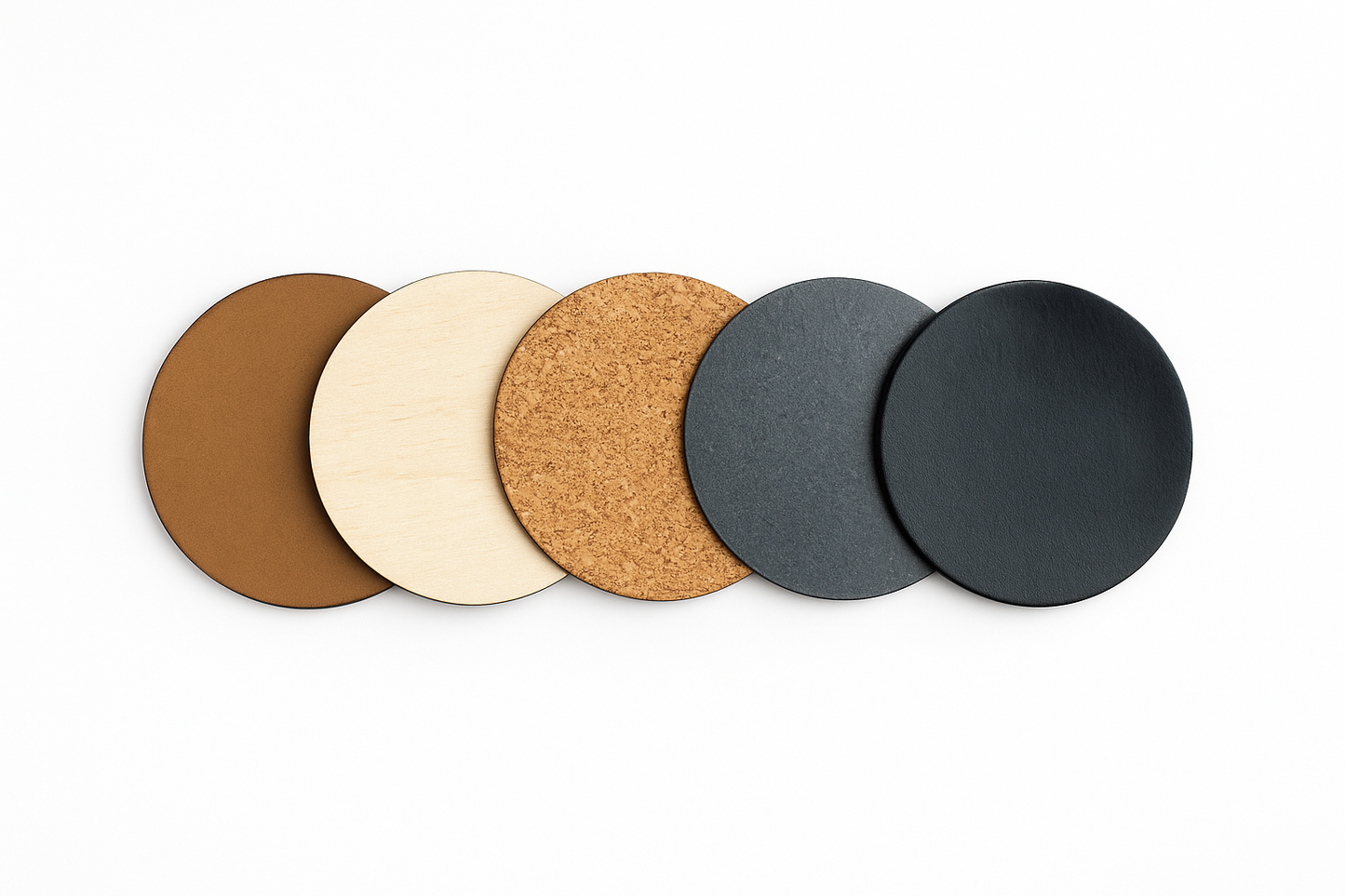

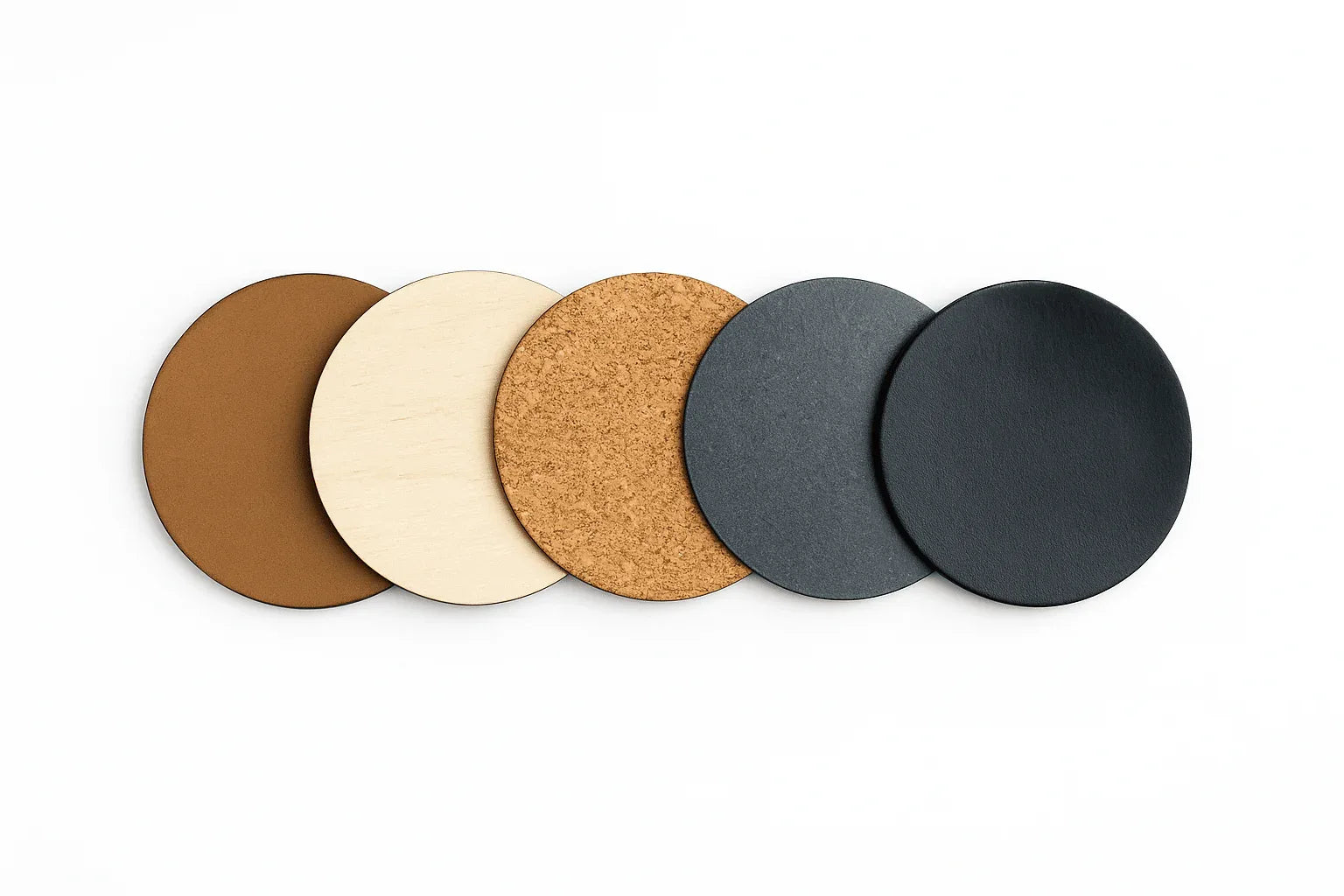

Available in every material we stock — neoprene, silicone, EPDM, Buna-N, Viton, PTFE, cork, and fiber. Additional specs on request.
Common Disc Gasket Applications
- End caps and blanking plates
- Flange-face and port covers
- Instrument and gauge seals
- Speaker and enclosure gaskets
- Sight-glass and lens seals
Need a center bore or bolt holes? See ring gaskets or flange gaskets with bolt holes.
Disc Gasket FAQs
What is a disc gasket?
A disc gasket is a solid circular gasket with no center hole, cut to a specified outer diameter. It is used to cover or seal a round opening or flange face.
What size disc gaskets can you cut?
Up to 32.5″ in diameter for most materials. Viton and PTFE discs go up to 12″, and neoprene foam up to 24″. Enter your diameter in the quote tool and it tells you if it fits the material you pick. No minimum order.
Enter your dimensions in the quote tool above for an instant price on custom disc gaskets from Fastest Gaskets — no minimum order, ships in one business day. Large orders may take longer.
Related materials: Viton gaskets.
Need help before you order?
Which material should I pick?
Full comparison on our Materials Guide.
- Hot parts with oil or fuel (engines, exhaust) → Viton (FKM)
- Hot parts, no oil (ovens, HVAC) → Silicone
- Oil or fuel (pumps, hydraulics, petroleum) → Buna-N (Nitrile) — or Viton for higher heat
- Water / outdoor / sun → EPDM
- General automotive or light oil → Neoprene
- Chemicals / aggressive fluids → PTFE (Teflon) — or Viton for high heat plus chemicals
- Soft seal / uneven surfaces / low pressure → Cork blends
Not sure which material fits? Email us at fastestgaskets@gmail.com.
We CNC cut (laser, waterjet, and more) to ±0.015″. Up to 32.5″ × 32.5″ for most materials; the quote tool shows the exact limit for the one you pick. Ships in one business day. Large orders may take longer.
How to measure
- Measure the outside size — diameter for rounds, or length × width for rectangles and squares.
- Measure the inside opening and any holes (ID, bolt holes, bolt circle if it is a flange).
- Note the thickness you need — pick it in the quoter.
- Enter sizes in inches.
- Already have a drawing? Upload a DXF for an instant price.
More detail: Measuring Guide. Materials: Materials Guide.
